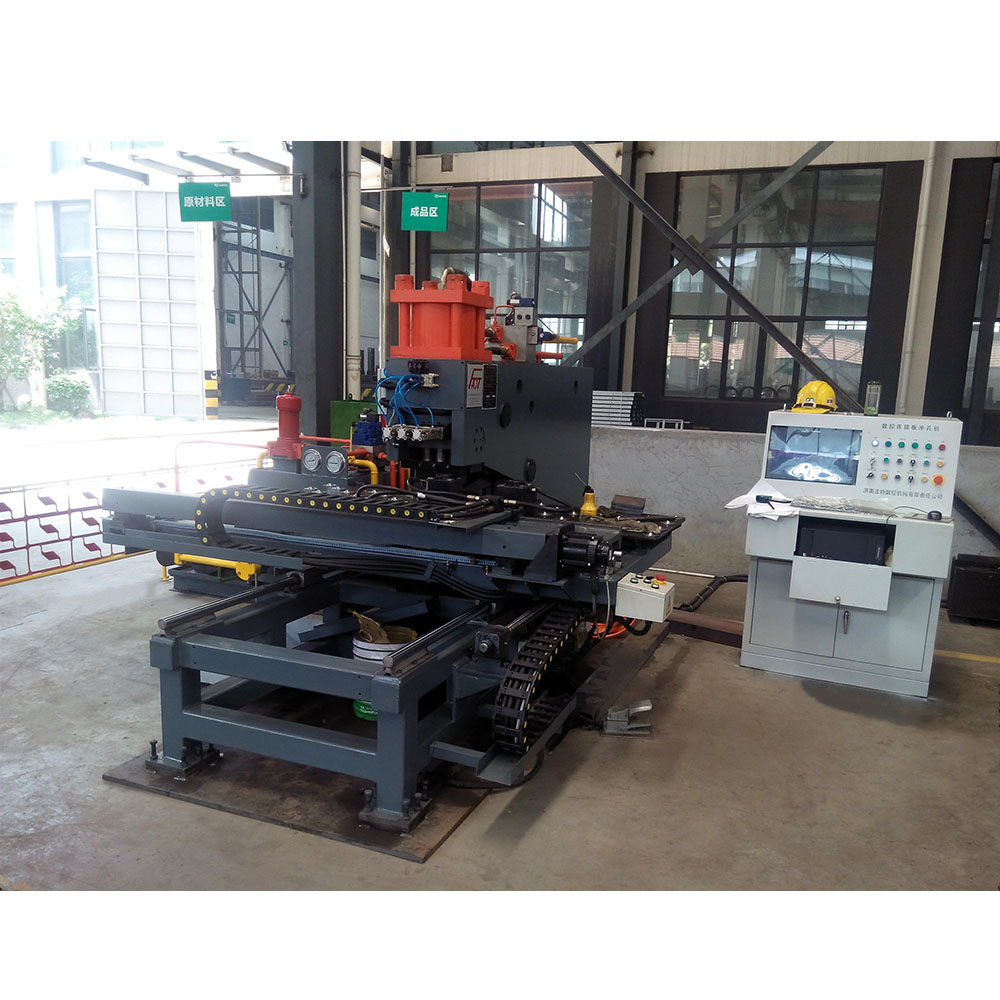

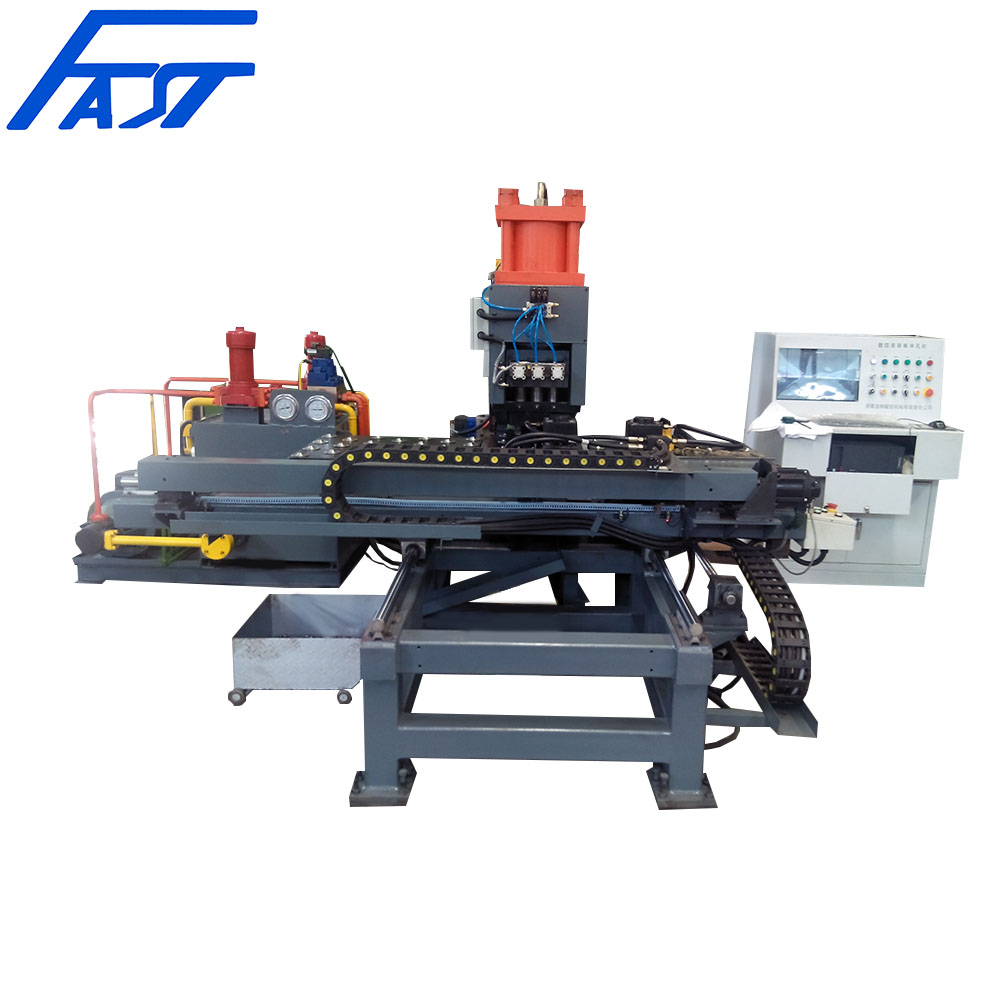

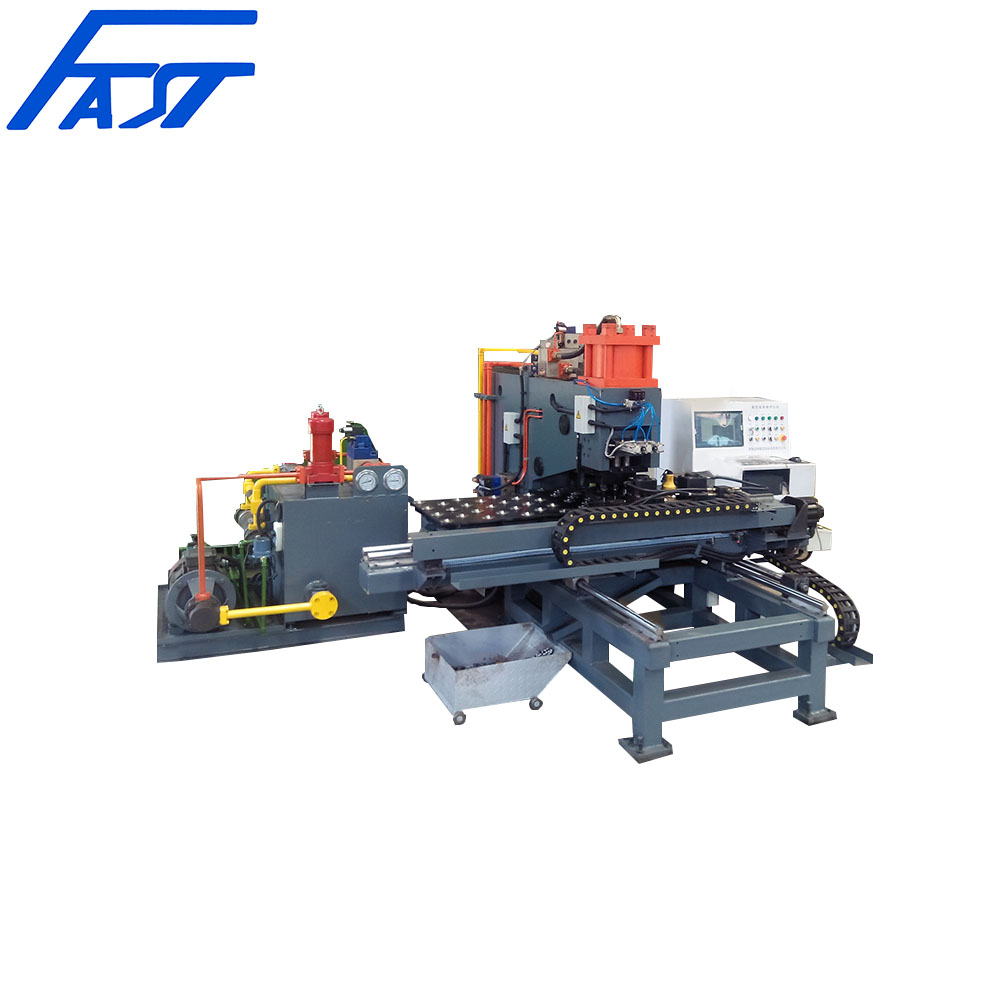

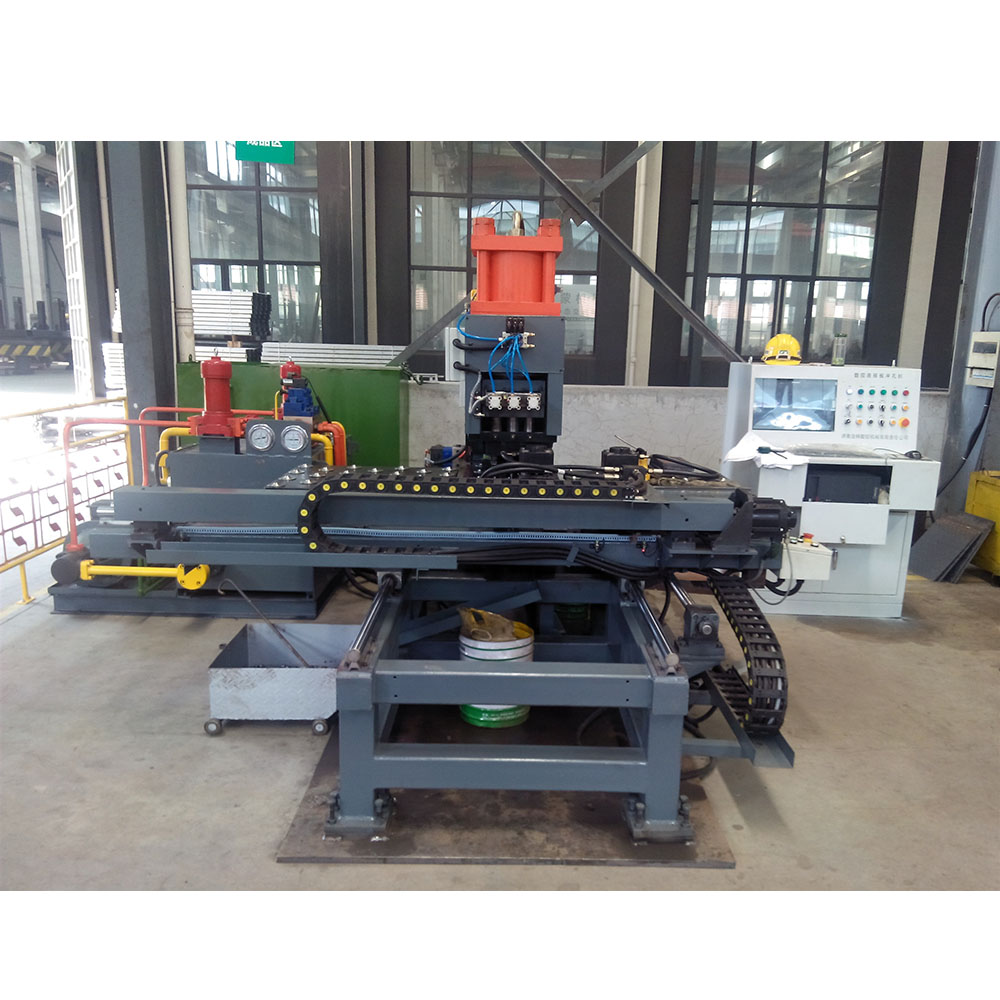

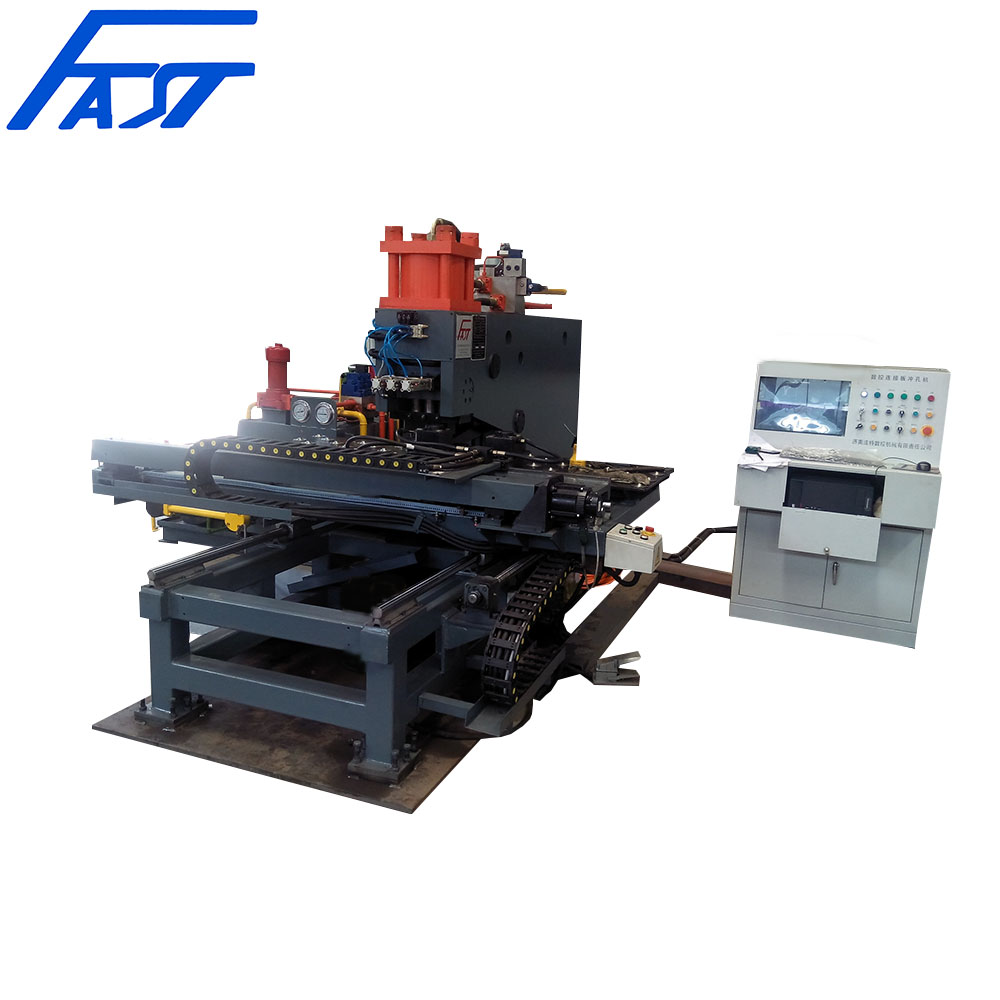

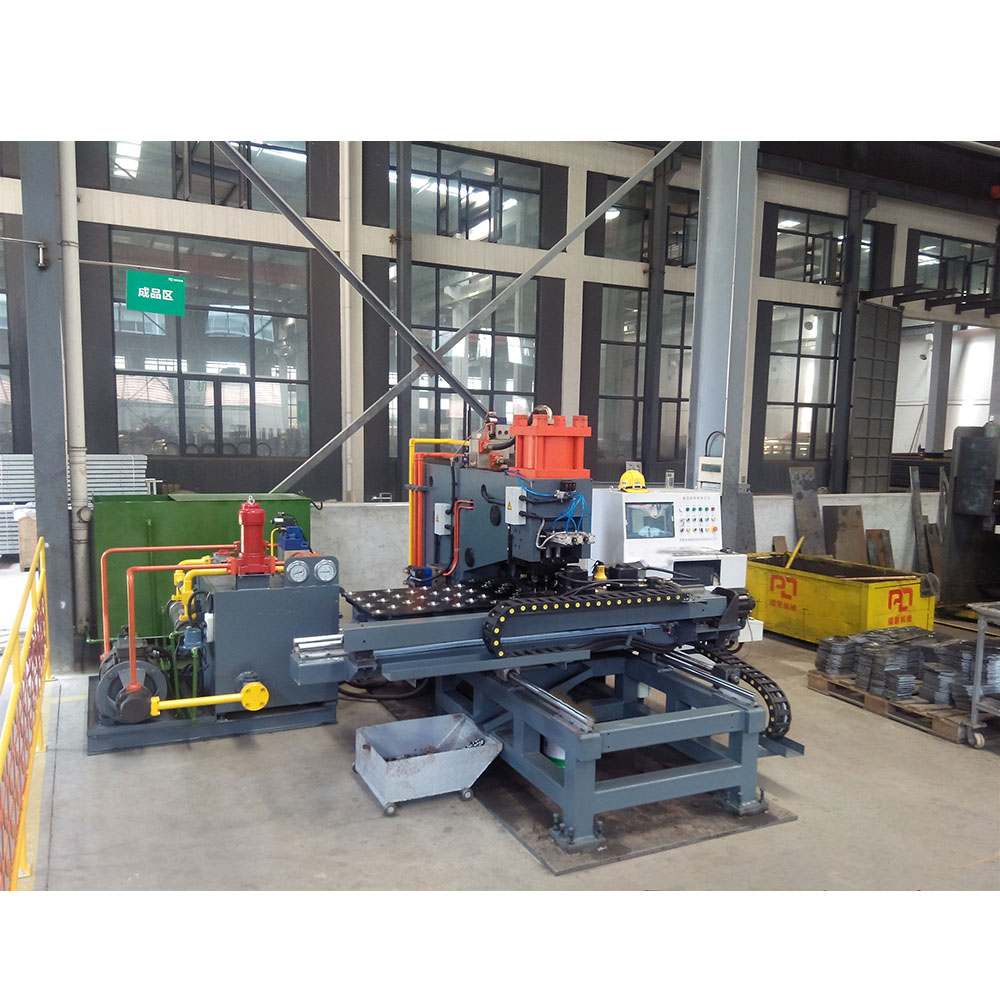

CNC Sheet Metal Punching Machine CJ103
APPLICATION
This machine is used for punching and marking of joint plate in the field of iron tower. It is also used to punch and mark of metal plate.
TECHNICAL DATA
Model |
CJ103 |
CJ104 |
CJ121 |
CJ123 |
|
Max. Size of Work Piece L*W (mm) |
1500*800 |
1500*800 |
1500*800 |
1500*800 |
|
Max. diameter of punching (mm) |
Φ32 |
Φ32 |
Φ40 |
Φ40 |
|
Plate Thickness of Punching (mm) |
5~20 |
5~25 |
5~25 |
5~25 |
|
Max. diameter of Drilling |
|
Φ50 |
|
|
|
Punching Force (kN) |
1000 |
1000 |
1200 |
1200 |
|
Marking Force (kN) |
1000 |
1000 |
1200 |
1200 |
|
Min. Distance Between Hole And Plate Edge (mm) |
Punching |
25 |
25 |
30
|
30 |
Drilling |
|
Depends on hole diameter |
|
|
|
Dimensions of Characters (mm) |
14*10*20 |
14*10*20 |
14*10*20 |
14*10*20 |
|
Quantity of Characters |
14/18 |
14/18 |
14/18 |
14/18 |
|
Die-Stations |
3 |
4 |
1 |
3 |
|
Feeding Speed of Drilling (mm/min) |
|
20~280 |
|
|
|
Strok of Drilling Spindle (mm) |
|
180 |
|
|
|
Rotation Speed of Drilling Spindle (r/min) |
|
100~750 |
|
|
|
Precision |
Accordance with GB2694-2003 |
Accordance with GB2694-2003 |
Accordance with GB2694-2003 |
Accordance with GB2694-2003 |
|
Programming Mode |
Input by keyboard, RS232 interface, floppy disk and USB interface |
||||
Overall Dimension L*W*H (mm) |
3200*2520*1875 |
3500*2520*2600 |
3700*2520*1875 |
3700*2520*1875 |
Model |
CJ80 |
CJ161/ CJ163 |
CJ201/ CJ202/ CJ203 |
CJ301 |
Max. Size of Work Piece L*W (mm) |
4000*1800 |
1500*800 |
1500*1500 |
1850*1850 |
Max. diameter of punching (mm) |
Depends on Workpiece Thickness |
Φ50 |
Φ50 |
Φ60 |
Plate Thickness of Punching (mm) |
2~10 |
5~25 |
5~30 |
5~30 |
Punching Force (kN) |
800 |
1600 |
2000 |
3000 |
Marking Force (kN) |
800 |
None |
None |
None |
Min. Distance Between Hole And Plate Edge (mm)
|
20 |
30 |
25-35, Φ≤37mm; 35~50,37mm<Φ≤60mm |
|
Dimensions of Characters (mm)
|
14*10*12 |
None |
None |
None |
Quantity of Characters |
14 |
None |
None |
None |
Die-Stations |
1 ~ 7 By Customer’s Request |
1/3 |
1/2/3 |
1 |
Precision |
Accordance with GB2694-2003 |
Accordance with GB2694-2003 |
Accordance with GB2694-2003 |
Accordance with GB2694-2003 |
★ All of these models can be customized according to customer requirements.
FAQ
· Are you a Manufacturer or a Trading company?
Manufacturer + trading company (integration),focusing on CNC machines for 18 years. Integration with Design,Machining and Assembly.
Exporting to Russia,USA,Australia,Vietnam,Brazil,Ethiopia,Tunisia,Bulgaria,India,Indonesia,Jordan,Pakistan,etc
· Do you have stock product ready to delivery?
In order to satisfy with customer for fast delivery, we have certain amount of machines in stock.
· After an order is placed,when to delivery?
General 30 working days. It depends on specific items and item quantities.
Please check with sale manager for exact delivery time.
· What is the Warranty with After-sale Services?
12 months warranty after delivery. Engineers will provide training program for operation and trouble shouting during installation. They visit customers regularly for service. All questions will be answered within 3 hours and 90% problem will be solved within 24 hours.
After the warranty, the professional after-sale service team will provide perfect technical support and help customer solve problems encountered.
· What about the product quality?
Each machine must be carried out quality examination and test when shipping and delivery goods.
